Safety & Maintenance
Safety is paramount: Avoid immersion in water, short-circuiting, or exposure to extreme heat. Store at 40-60% SOC in a cool, dry place (10-30°C). For long-term storage, recharge every 3 months. Fully charge before first use. Compliant with transportation standards for air, sea, and land shipping.
BMS Protection Features
- Overcharge Protection: Triggers at 3.65V/cell (28.8V overall), recovers at 3.35V/cell (27V overall).
- Overdischarge Protection: Triggers at 2.5V/cell (20V overall), recovers at 3.0V/cell.
- Overcurrent Protection: Charging limit 180A (2s delay), Discharge limit 200A (30s delay).
- Temperature Protection: Charging high: 55°C, low: 0°C; Discharge high: 60°C, low: -20°C.
- Capacity Alarm: Alerts at 5% SOC, recovers at 10%.
Applications
- Electric Forklifts: Powers heavy-duty lifting in warehouses with 280Ah capacity and 175A max discharge for extended runtime.
- Material Handling Equipment: Ideal for distribution centers, supporting 24/7 operations in dusty/humid environments via IP67 rating.
- Manufacturing Facilities: Enables seamless transport in varying temperatures (-20°C to 50°C discharge), reducing downtime.

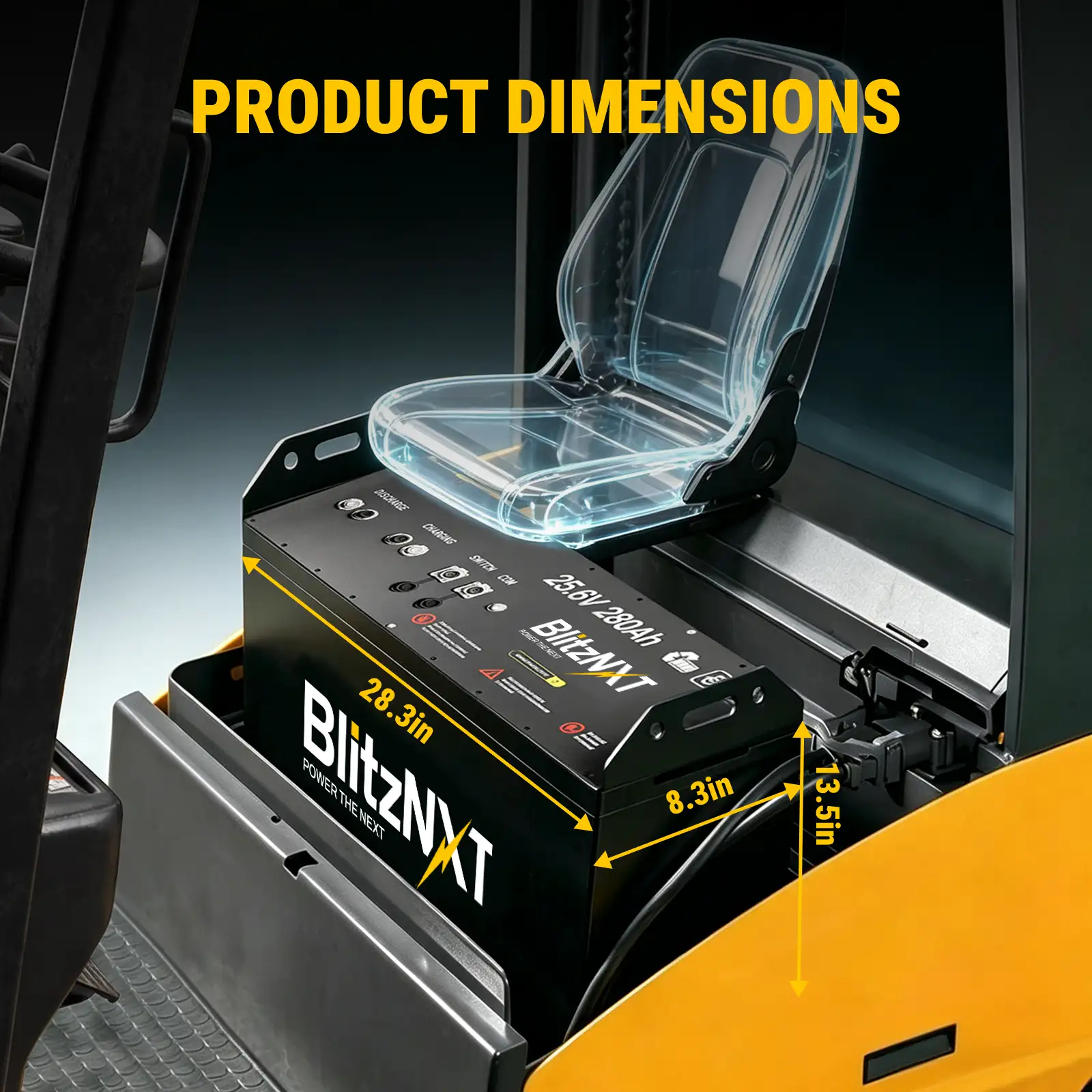

- Indoor/Outdoor Use: Compact 720x210x420mm design fits standard compartments; BMS protects against overcharge/overdischarge.
- Sustainable Upgrade: Replaces lead-acid batteries for eco-friendly efficiency in logistics.
| Item | Standard | Remark |
|---|---|---|
| Specification | 25.6V/280Ah | |
| Nominal voltage | 25.6V | |
| Capacity | 280Ah | |
| Minimum capacity | 280Ah | 0.2C(92A) discharge 2.0V/CELL |

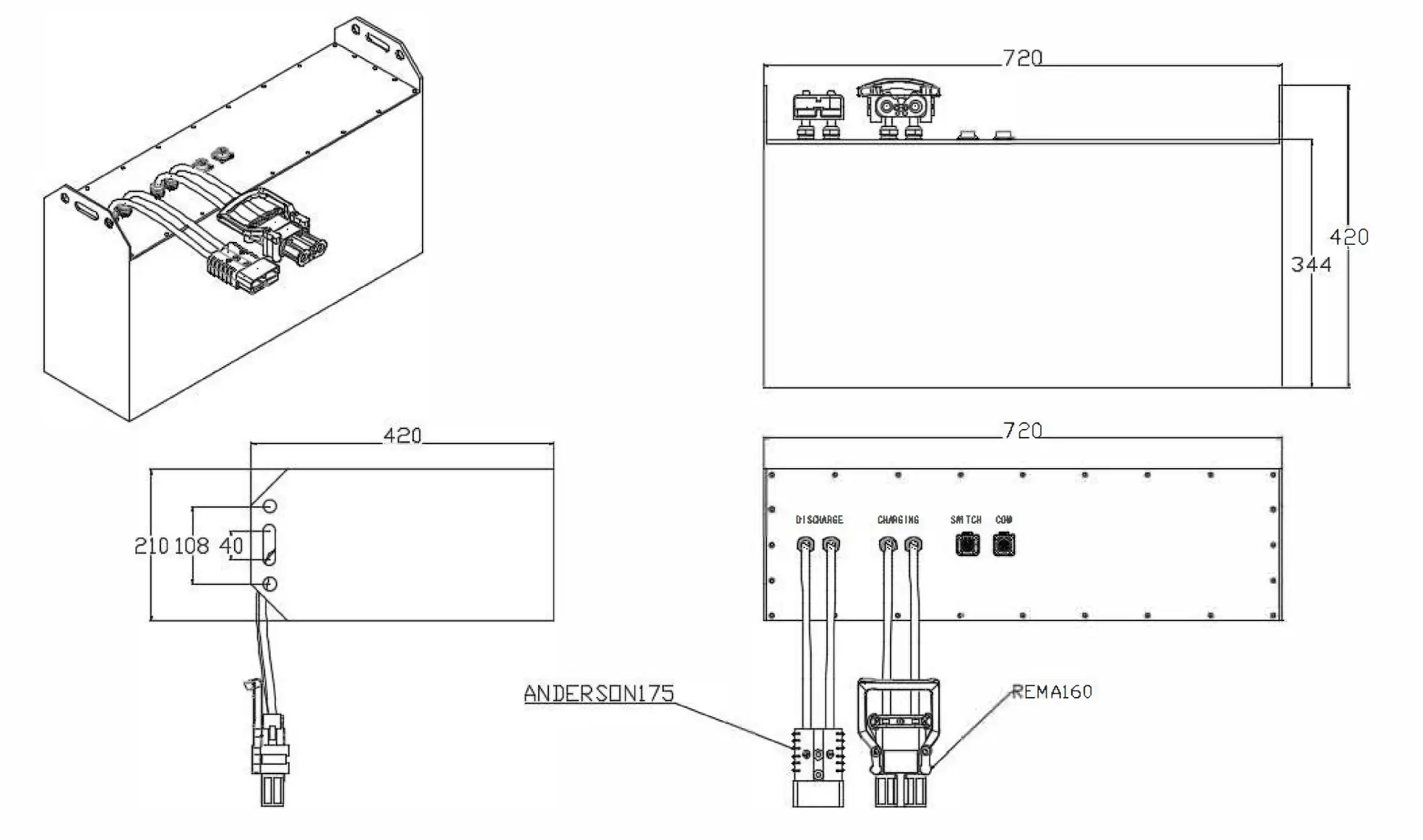

| Size (L*W*H) | 720*210*420mm | |
| Weight | About 80Kg | |
| Standard discharge | 100A | |
| Max Discharge current | 175A | |
| Discharge cut-off voltage | 20V | |
| Charge voltage | 28.8V | |
| Standard charge | 50A | |
| Max Charge current | 160A | SOC:0%-80% 25℃-45℃ |
| Resistance | ≤30mΩ | |
| Charge temperature range | 0~45℃ | |
| Discharge temperature range | -20~50℃ | |
| Storage temperature range | 10~30℃ | |
| Storage humidity | 5%~90% | |
| Charge Discharge interface | REMA160 ANDERSON175 |
|
| Waterproof Rate | IP67 | |
| Shell material | Black iron box | |
| Cycle life | ≥2000 time | Operating conditions: 25℃±2℃ 0.2C |
