BlitzNXT 36V 105Ah Golf Cart Lithium iron Battery

  • High Capacity & Voltage: 105Ah at 38.4V nominal, for longer rides without frequent recharges.
  • Efficient Performance: 100A max discharge/charge for smooth acceleration and fast recovery.
  • Exceptional Cycle Life: ≥4000 cycles at 0.2C rate, ensuring years of dependable use.
  • IP65 Waterproof Rating: Protected against dust and low-pressure water for outdoor durability.
  • Compact Design: 45kg weight, black iron box enclosure, 470x330x260mm for easy cart integration.
  • Smart BMS with Bluetooth: Monitors and protects against overcharge, overdischarge, overcurrent, and temperature issues.
Contact Us

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

BlitzNXT 36V 105Ah Golf Cart Lithium iron Battery
BlitzNXT 36V 105Ah Golf Cart Lithium iron Battery

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Safety & Maintenance

Safety guidelines: Avoid water immersion, short-circuiting, or fire exposure. Store at 40-60% SOC in a dry, ventilated area (10-30°C); recharge every 3 months for 2-3 hours at 20A. Fully charge before first use. Transport securely via car, train, ship, or air.

BMS Protection Features

  • Overcharge Protection: Triggers at 3.65V/cell (43.8V overall), recovers at 3.35V/cell (40.2V overall).
  • Overdischarge Protection: Triggers at 2.5V/cell (30V overall), recovers at 3.0V/cell.
  • Overcurrent Protection: Charging limit 120A (2s delay), Discharge limit 350A (10s delay).
  • Temperature Protection: Charging high: 55°C, low: -2°C; Discharge high: 60°C, low: -20°C.
  • Capacity Alarm: Alerts at 5% SOC, recovers at 10%.

Applications

  • Golf Carts: 105Ah capacity and 100A max discharge enable full rounds on courses, with quick 100A charging for minimal downtime.
  • Low-Speed Neighborhood Vehicles: IP65 rating suits outdoor use in rain/dust, supporting family errands in -20°C to 50°C conditions.
  • Utility Carts: Bluetooth BMS monitors performance for maintenance-free operation in resorts or campuses, extending range over lead-acid.
  • Leisure Mobility: Compact 470x330x260mm fits standard compartments; ≥4000 cycles reduce replacements for eco-friendly daily drives.
  • Sustainable Upgrade: Lighter 45kg design improves efficiency, cutting energy use in parks and gated communities.
Item Standard Remark
Specification 38.4V/105Ah 1P12S
Nominal voltage 38.4V
Capacity 100Ah
Minimum capacity 100Ah 0.2C(20A) discharge
2.0V/CELL

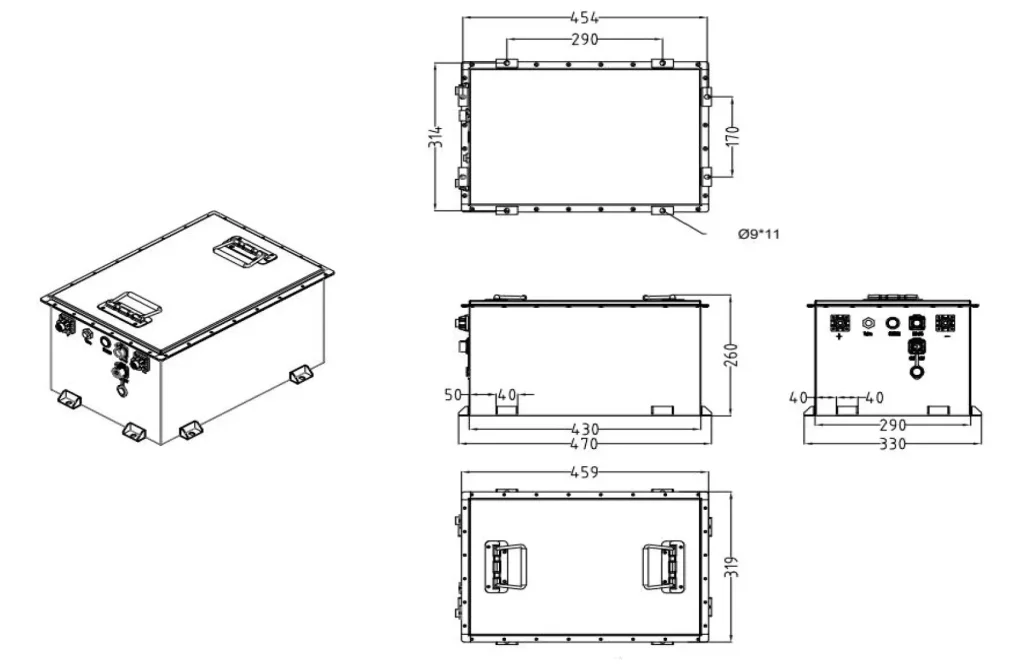

Size (L*W*H) 470*330*260mm
Weight 45Kg
Standard discharge 20A
Max Discharge current 100A SOC:20%-100%
0℃-50℃
Discharge cut-off voltage 30V
Charge voltage 43.2V
Standard charge 20A
Max Charge current 100A SOC:0%-80%
25℃-45℃
Resistance ≤120mΩ
Charge temperature range 0~45℃
Discharge temperature range -20~50℃
Storage temperature range 10~30℃
Storage humidity 5%~90%
Charge Discharge interface ACTB-135
Mode of communication RS485
Waterproof Rate IP65
Shell material Black iron box
Cycle life ≥4000 time Operating conditions:
0.2C/0.2C
Other Bluetooth

Additional information

Weight 99 lbs
Dimensions 18.50 × 12.99 × 10.24 in
Nominal Voltage

38.4V
Capacity

100Ah
Standard Discharge

20A
