Safety & Maintenance
Prioritize safety: Do not immerse in water, short-circuit, or expose to fire. Store at 40-60% SOC in a dry, ventilated area (10-30°C); recharge every 3 months for 5-6 hours at 50A. Fully charge before initial use. Suitable for transport via air, sea, rail, or road with proper packaging.
BMS Protection Features
- Overcharge Protection: Triggers at 3.65V/cell (57.6V overall), recovers at 3.35V/cell (53V overall).
- Overdischarge Protection: Triggers at 2.5V/cell (40V overall), recovers at 3.0V/cell.
- Overcurrent Protection: Charging limit 250A (2s delay), Discharge limit 400A (30s delay).
- Temperature Protection: Charging high: 55°C, low: 0°C; Discharge high: 60°C, low: -20°C.
- Capacity Alarm: Alerts at 5% SOC, recovers at 10%.
Applications
- Heavy-Duty Forklifts: Delivers 460Ah capacity and 350A max discharge for extended shifts in large warehouses, minimizing recharge needs.
- Material Handling: Supports 24/7 operations in distribution centers with IP67 rating for dust/humidity resistance.
- Manufacturing Lines: Handles high loads in -20°C to 50°C environments, ensuring reliable transport without performance drops.
- Indoor/Outdoor Logistics: 830x560x406mm design fits standard compartments; BMS prevents overcharge/overdischarge for safety.
- Eco-Friendly Upgrade: Replaces lead-acid batteries, offering ≥2000 cycles for sustainable, cost-saving industrial power.
| Item | Standard | Remark |
|---|---|---|
| Specification | 51.2V/460Ah | |
| Nominal voltage | 51.2V | |
| Capacity | 460Ah | |
| Minimum capacity | 440Ah | 0.2C(92A) discharge 2.0V/CELL |

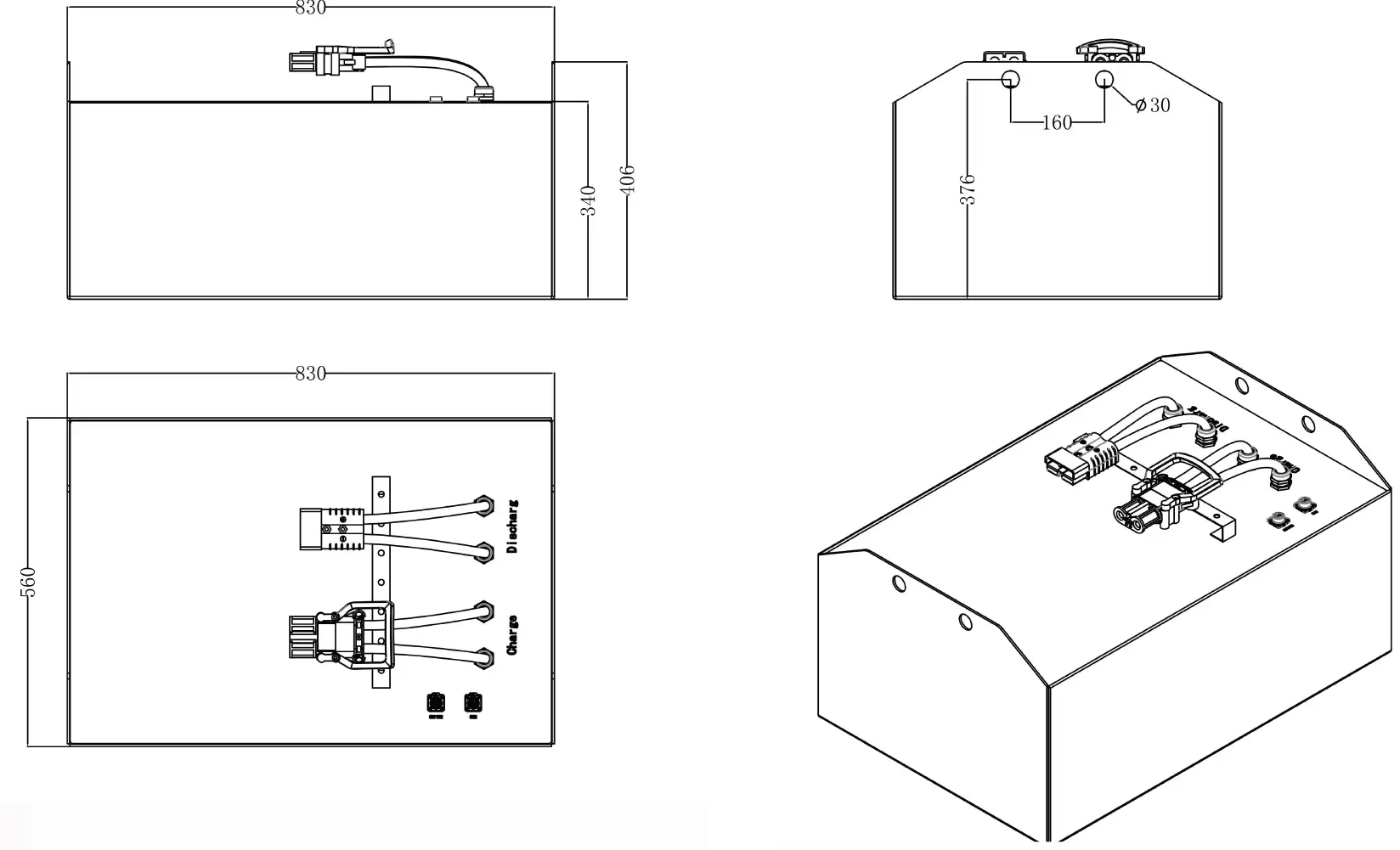

| Size (L*W*H) | 830*560*406mm | |
| Weight | About 230Kg | |
| Standard discharge | 100A | |
| Max Discharge current | 350A | |
| Discharge cut-off voltage | 40V | |
| Charge voltage | 57.6V | |
| Standard charge | 50A | |
| Max Charge current | 200A | SOC:0%-80% 25℃-45℃ |
| Resistance | ≤30mΩ | |
| Charge temperature range | 0~45℃ | |
| Discharge temperature range | -20~50℃ | |
| Storage temperature range | 10~30℃ | |
| Storage humidity | 5%~90% | |
| Charge Discharge interface | REMA320 ANDERSON350 |
|
| Waterproof Rate | IP67 | |
| Shell material | Black iron box | |
| Cycle life | ≧2000 time | Operating conditions: 25℃±2℃ 0.2C/0.2C |
